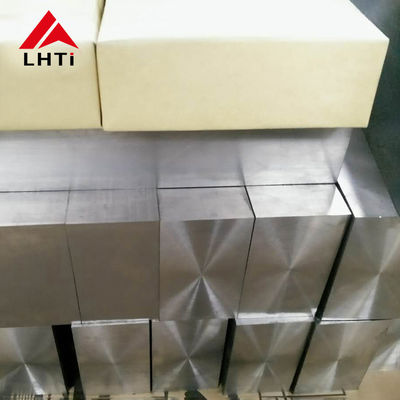

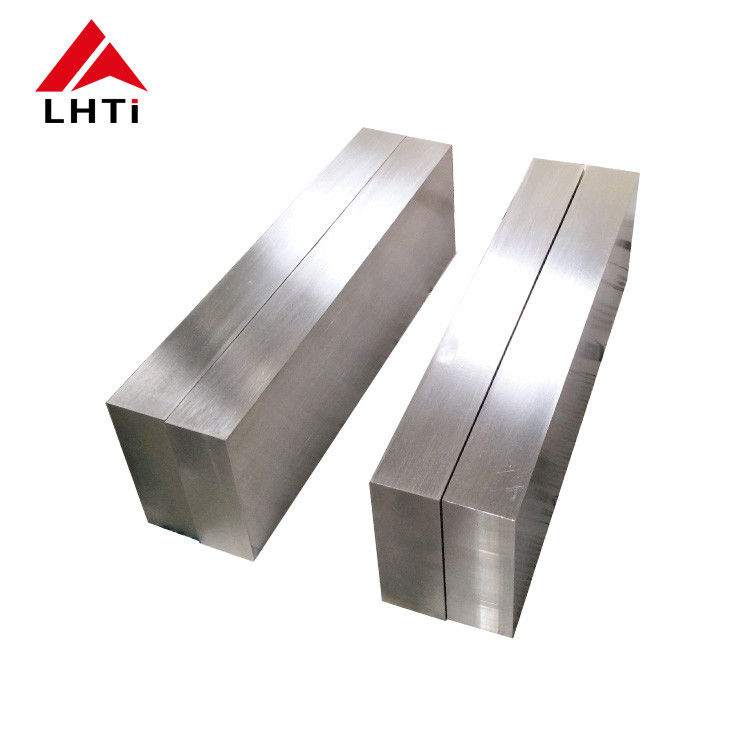

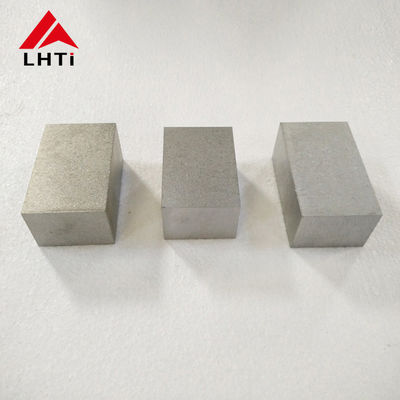

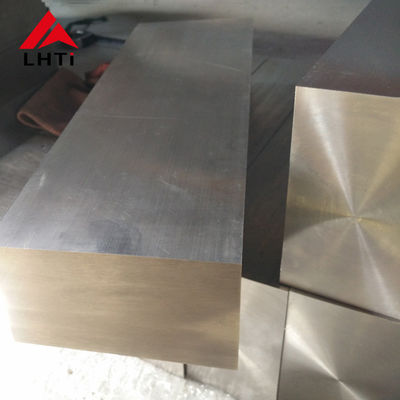

Zuivere vierkante titaniumplaat ASTM B348
BT1 BT1 BT2 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT1 BT2 BT1 BT2 BT3 BT3 BT4 BT4 BT5 BT5 BT6 BT6 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7 BT7
Standaard:ASTM B381
Techniek: machines voor het smeden
Breedte: 30-1000 mm
Lange: 30-1200 mm
| Chemische eisen | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo. | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5 tot 6.75 | 3.5 tot 4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12 tot 0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Trekkingsvereisten | |||||
| Graad | Tensielengte ((min) | Gewichtssterkte ((mm) | Verlenging ((%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
