Productdetails
Plaats van herkomst: Shaanxi, China
Merknaam: LH-Ti
Certificering: ISO9001:2015
Modelnummer: TC21
Betaling & het Verschepen Termijnen
Min. bestelaantal: 10 kg
Prijs: USD 30-50 / kg
Verpakking Details: Standaard het uitvoeren verpakking: buiten beschermend schuim en EPE binnen en triplexgeval.
Levertijd: 10-15 dagen
Betalingscondities: T/T, MoneyGram, L/C, Western Union, Paypal
Levering vermogen: 5 ton per maand
Productnaam: |
Titaniumbar |
Standaard: |
ASTM B348 |
Materiaal: |
TC21 |
Vorm: |
Ronde, Vlak Vierkant, Hexuitdraai |
Diameter: |
6350MM |
Lange: |
Maximum 6000mm |
Oppervlakte: |
Helder |
Productnaam: |
Titaniumbar |
Standaard: |
ASTM B348 |
Materiaal: |
TC21 |
Vorm: |
Ronde, Vlak Vierkant, Hexuitdraai |
Diameter: |
6350MM |
Lange: |
Maximum 6000mm |
Oppervlakte: |
Helder |
Ronde titaniumstaaf/staaf oxidatieoppervlak
Certificering:ISO9001:2015,SGS,TUV
Standard:ASTM B348/AMS4928
Vorm: ronde staaf/hexstaaf
Toepassing: medische industrie, luchtvaart
Diameter: ≥ 1,0 mm
Lange: ≤ 6000 mm (normaal)
Techniek: koudgewalst, warmgewalst
Klasse:GR5.Ti6AL-4V. ti6al4v eli.klasse 5
Materiaal:Titanium
Oppervlak: gepolijst
Chemische eisen | |||||||||||
N | C | H | Fe | O | Al | V | Pd | Mo. | Ni | Ti | |
Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5 tot 6.75 | 3.5 tot 4.5 | / | / | / | bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12 tot 0.25 | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
TC11 | 0.05 | 0.08 | 0.012 | 0.25 | 0.15 | 5.8 ~ 7.0 | / | / | 2.8 tot 3.8 | / | bal |
TA18 | 0.05 | 0.08 | 0.015 | 0.25 | 0.12 | 2.0~3.5 | 1.5 tot 3.0 | / | / | / | bal |
TC20 | 0.05 | 0.08 | 0.009 | 0.25 | 0.20 | 5.5 tot 6.5 | / | / | / | / | bal |
TC21 | 0.05 | 0.08 | 0.015 | 0.15 | 0.15 | 5.2~6.8 | / | / | 2.2~3.3 | / | bal |
TC26 | 0.05 | 0.08 | 0.012 | 0.25 | 0.15 | / | / | / | / | / | bal |
Trekkingsvereisten | |||||
Tensielengte ((min) | Gewichtssterkte ((mm) | Verlenging ((%) | |||
KSI | MPa | Ksi | MPa | ||
Gr1 | 35 | 240 | 20 | 138 | 24 |
Gr2 | 50 | 345 | 40 | 275 | 20 |
Gr5 | 130 | 895 | 120 | 828 | 10 |
Gr7 | 50 | 345 | 40 | 275 | 20 |
Gr12 | 70 | 438 | 50 | 345 | 18 |

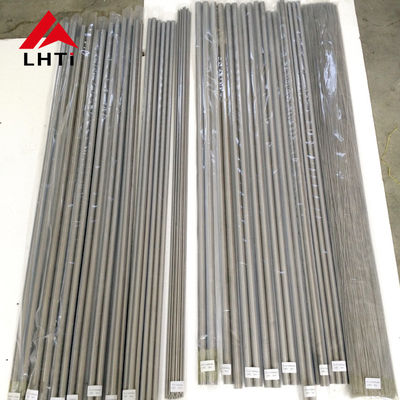

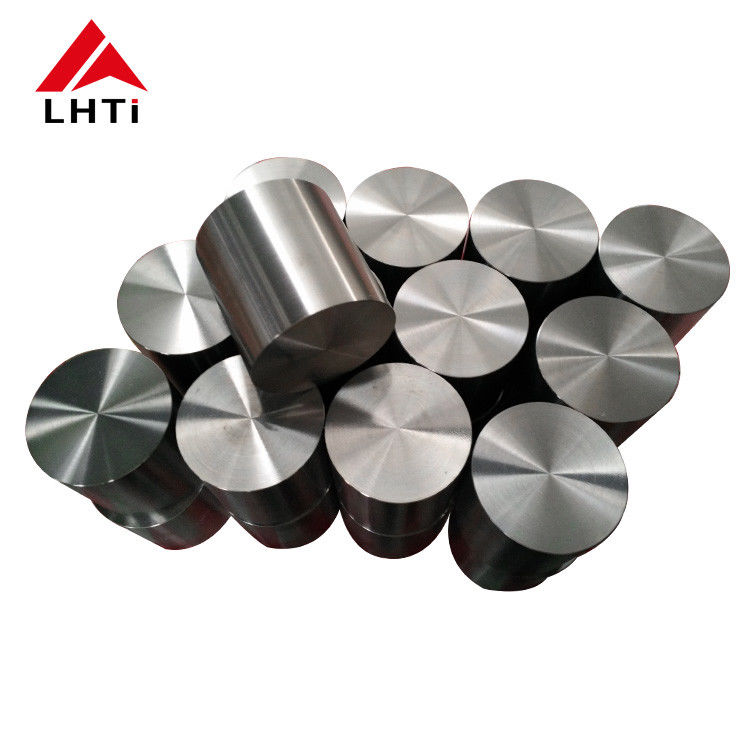

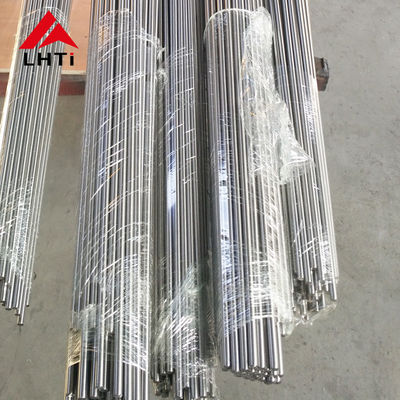

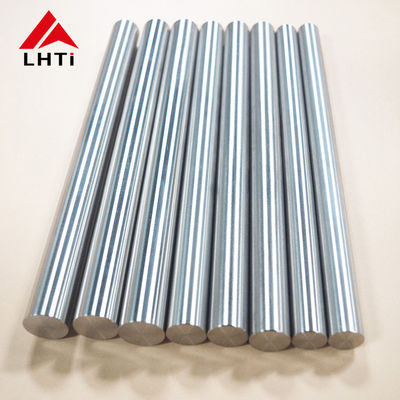

Gedetailleerde afbeeldingen
