Flanken van titanium
Created with Pixso.

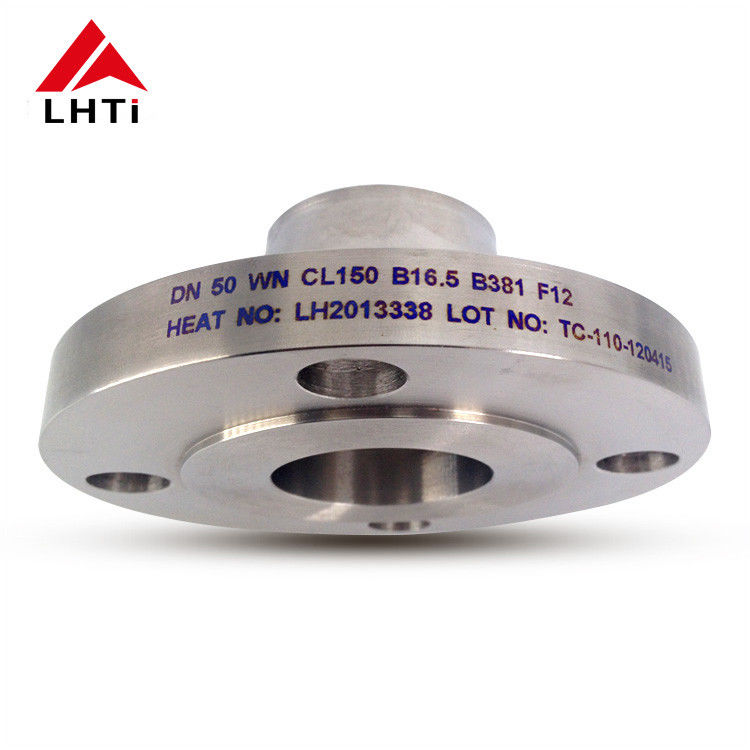

ANSI B16.5 Klasse 2 WN Lashals Titanium flens Gepolijst oppervlak

ANSI B16.5 Klasse 2 WN Lashals Titanium flens Gepolijst oppervlak

Merknaam: LH-Ti
Modelnummer: Links-BL
MOQ: 1 stuk
Prijs: US dollar $30/pc--US dollar $80/pc
Betalingsvoorwaarden: L/C, T/T, Western Union
Toeleveringsvermogen: 5000 PCs per maand
Gedetailleerde informatie
Plaats van herkomst:
Baoji, China
Certificering:
ISO9001, TUV etc.
Type:
WN, SO, BL, SW, PL, lap joint, op maat.
Standaard:
ANSI B16.5, JIS B2220, DIN2627-2628, ASME, GB/T 9116, ASTM B16.5
Materiaal:
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Toepassing:
Deze producten worden gebruikt in auto's, glazen, medische apparatuur, elektronica, petrochemische a
Verzegelingsoppervlak:
RF
grootte:
1/2 " ~ 30 " NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Druk:
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, ENZ.
Oppervlakte:
gepolijst
Techniek:
Gesmeed en CNC-bewerk.
Inspectie:
Ultrasone testen en materiaalonderzoek EN10204.3.1
Verpakking Details:
Verpakt door schuim in triplexdoos voor de uitvoer
Levering vermogen:
5000 PCs per maand
Markeren:

Titaniumflens van klasse 2 WN

,

Gepolijste lashals van titanium

Productbeschrijving

ANSI B16.5 Klasse 2 WN lashals van titanium flens



Titanium blinde flenzen zijn belichaamd door hun bescherming tegen aanvallen door zuren en oplosbare basen, net als hun hoge mechanische kwaliteit en grote buigzaamheid. low weight ratio and outstanding corrosion resistance inherent to titanium and its alloys has led to a wide and diversified range of successful applications which demand high levels of reliable performance in surgery and medicine as well as in aerospace, automobiel, chemische installaties, elektriciteitsopwekking, olie- en gaswinning, sport en andere belangrijke industrieën.



Chemische eisen
  N C H Fe O Al V Pd Mo. Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5 tot 6.75 3.5 tot 4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12 tot 0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal



Trekkingsvereisten
Graad Tensielengte ((min) Gewichtssterkte ((mm) Verlenging ((%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
