Productdetails
Plaats van herkomst: BaoJi Shaanxi China
Merknaam: LHTI
Certificering: ISO9001
Modelnummer: Links-145
Betaling & het Verschepen Termijnen
Min. bestelaantal: 5 stuk
Prijs: US dollar $10/pc-US dollar $60/pc
Betalingscondities: L/C, D/P, T/T, Western Union, paypal enz.
Levering vermogen: 10000 stuk per maand
Materiaal: |
Titanium |
Rang: |
Gr1,Gr2 |
Zuiverheid: |
99,5% min |
Graad: |
de graad van 45 graad/90 |
Straal: |
Lange Straal |
Sleutelwoorden: |
Titaniumelleboog |
Sleutelwoord: |
titaniumkrommingen |
Sleutelwoorden: |
de pijp van de titaniummontage |
pakket: |
plwood geval |
Oppervlakte: |
het inleggen oppervlakte/Zandstralenoppervlakte enz. |
Materiaal: |
Titanium |
Rang: |
Gr1,Gr2 |
Zuiverheid: |
99,5% min |
Graad: |
de graad van 45 graad/90 |
Straal: |
Lange Straal |
Sleutelwoorden: |
Titaniumelleboog |
Sleutelwoord: |
titaniumkrommingen |
Sleutelwoorden: |
de pijp van de titaniummontage |
pakket: |
plwood geval |
Oppervlakte: |
het inleggen oppervlakte/Zandstralenoppervlakte enz. |

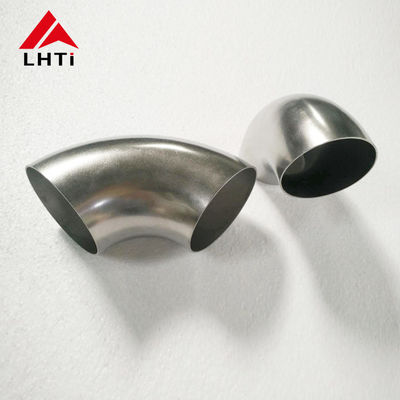

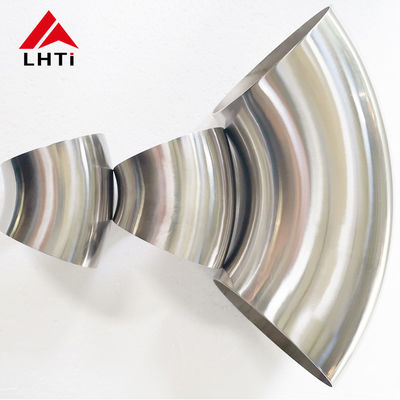

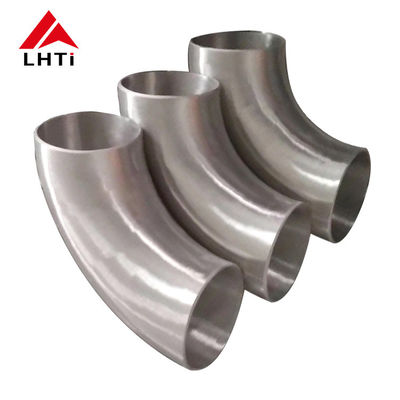

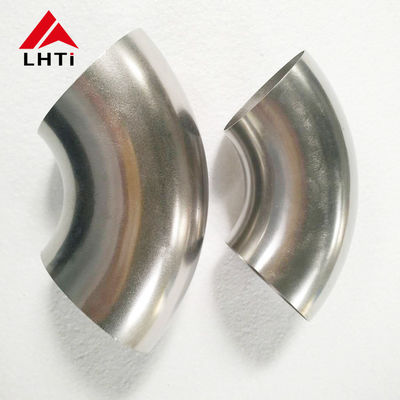

Pure Titanium Elbow, 45 graden 90 graden Titanium Pipe
Titaniumbuizen met een afmetingstolerantie die voldoet aan ASME B16.9De wanddikte van de titaniuminstallaties voldoet aan de standaardschema's 10S en 40S van ASME B36.19M.
1Meer details.
| Titanium elleboog | |
| Materiaal | Titanium ((Gr1,Gr2,Gr7,Gr12) |
| Standaard | Ansi/asme b16.9, b16.28 |
| Degree | 30D, 45D, 90D, 120D, 180D |
| Wanddikte | Sch5 s-Sch160 s ((1-15 mm) |
| Technische | Druk, gelast, naadloos |
| Inspectie van lasleidingen | Röntgenproeven of penetratieproeven van kleurstoffen |
| Verslag van de materiaalproef | EN10204.3.1Chemische samenstelling en fysische eigenschappen |
| Markering van het product | Alle producten worden na afwerking met laser gemarkeerd |
| Toepassing | Aardgas, chemische industrie, chloorkali, metallurgie, carbonisering, koeling, lichte industrie, zoutindustrie, elektriciteit, enz. |
| Certificeren | Duitsland TUV-beoordeling, ISO9001:2008 |
| Betaling | T/T op voorhand, L/C op zicht, Western Union, Paypal, Escrow, |
| Pakket | Eerst een plastic zak, dan een vorm binnen, een plywoodkoffer buiten. |
| Schema 10S licht N.P.S. | Schema 40S Standaard NPS | ||||||||||||||||
| Nominale buisgrootte | Buitentijdsdiameter | Midden naar het gezicht | Wanddikte | Inwendige diameter | Ongeveer Wt in pond/kg. | Wanddikte | Inwendige diameter | Ongeveer Wt in pond/kg. | |||||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | Lb | kg | in | mm | in | mm | Lb | kg |
| 1/2 inch. | 15 | 0.84 | 21.34 | 0.63 | 15.88 | 0.08 | 2.11 | 0.67 | 17.12 | 0.04 | 0.02 | 0.11 | 2.77 | 0.62 | 15.80 | 0.05 | 0.02 |
| 3/4 inch. | 20 | 1.05 | 26.67 | 0.44 | 11.11 | 0.08 | 2.11 | 0.88 | 22.45 | 0.04 | 0.02 | 0.11 | 2.87 | 0.82 | 20.93 | 0.05 | 0.02 |
| 1 inch | 25 | 1.32 | 33.40 | 0.88 | 22.23 | 0.11 | 2.77 | 1.10 | 27.86 | 0.11 | 0.05 | 0.13 | 3.38 | 1.05 | 26.64 | 0.14 | 0.06 |
| 1-1/4 inch. | 32 | 1.66 | 42.16 | 1.00 | 25.40 | 0.11 | 2.77 | 1.44 | 36.63 | 0.14 | 0.06 | 0.14 | 3.56 | 1.38 | 35.05 | 0.22 | 0.10 |
| 1-1/2 inch. | 40 | 1.90 | 48.26 | 1.13 | 28.58 | 0.11 | 2.77 | 1.68 | 42.72 | 0.22 | 0.10 | 0.15 | 3.68 | 1.61 | 40.89 | 0.28 | 0.13 |
| 2′′ | 50 | 2.38 | 60.33 | 1.38 | 34.93 | 0.11 | 2.77 | 2.16 | 54.79 | 0.32 | 0.15 | 0.15 | 3.91 | 2.07 | 52.50 | 0.50 | 0.23 |
| 2 1/2 inch. | 65 | 2.88 | 73.03 | 1.75 | 44.45 | 0.12 | 3.05 | 2.64 | 66.93 | 0.61 | 0.28 | 0.20 | 5.16 | 2.47 | 62.71 | 0.97 | 0.44 |
| 3′′ | 80 | 3.50 | 88.90 | 2.00 | 50.80 | 0.12 | 3.05 | 3.26 | 82.80 | 0.79 | 0.36 | 0.22 | 5.49 | 3.07 | 77.93 | 1.36 | 0.62 |
| 3 1/2 inch. | 90 | 4.00 | 101.60 | 2.25 | 57.15 | 0.12 | 3.05 | 3.76 | 95.50 | 0.95 | 0.43 | 0.23 | 5.74 | 3.55 | 90.12 | 1.79 | 0.81 |
| 4′′ | 100 | 4.50 | 114.30 | 2.50 | 63.50 | 0.12 | 3.05 | 4.26 | 108.20 | 1.36 | 0.62 | 0.24 | 6.02 | 4.03 | 102.26 | 2.63 | 1.19 |
| 5′′ | 125 | 5.56 | 141.30 | 3.13 | 79.38 | 0.13 | 3.40 | 5.30 | 134.49 | 2.29 | 1.04 | 0.26 | 6.55 | 5.05 | 128.19 | 4.33 | 1.96 |
| 6 inch. | 150 | 6.63 | 168.28 | 3.75 | 95.25 | 0.13 | 3.40 | 6.36 | 161.47 | 3.43 | 1.56 | 0.28 | 7.11 | 6.07 | 154.05 | 6.86 | 3.11 |
| 8 inch. | 200 | 8.63 | 219.08 | 5.00 | 127.00 | 0.15 | 3.76 | 8.33 | 211.56 | 6.75 | 3.06 | 0.32 | 8.18 | 7.98 | 202.72 | 13.50 | 6.12 |
| 10′′ | 250 | 10.75 | 273.05 | 6.25 | 158.75 | 0.17 | 4.19 | 10.42 | 264.67 | 12.50 | 5.67 | 0.37 | 9.27 | 10.02 | 254.51 | 24.50 | 11.11 |
| 12 inch. | 300 | 12.75 | 323.85 | 7.50 | 190.50 | 0.18 | 4.57 | 12.39 | 314.71 | 17.00 | 7.71 | 0.38 | 9.53 | 12.00 | 304.80 | 37.50 | 17.01 |
| 14" | 350 | 14.00 | 355.60 | 8.75 | 222.25 | 0.19 | 4.78 | 13.62 | 346.05 | 23.00 | 10.43 | 0.38 | 9.53 | 13.25 | 336.55 | 44.50 | 20.18 |
| 16 inch. | 400 | 16.00 | 406.40 | 10.00 | 254.00 | 0.19 | 4.78 | 15.62 | 396.85 | 30.00 | 13.61 | 0.38 | 9.53 | 15.25 | 387.35 | 58.00 | 26.30 |
| 18 inch. | 450 | 18.00 | 457.20 | 11.25 | 285.75 | 0.19 | 4.78 | 17.62 | 447.65 | 38.00 | 17.23 | 0.38 | 9.53 | 17.25 | 438.15 | 75.00 | 34.01 |
| 20′′ | 500 | 20.00 | 508.00 | 12.50 | 317.50 | 0.22 | 5.54 | 19.56 | 496.93 | 63.00 | 28.57 | 0.38 | 9.53 | 19.25 | 488.95 | 94.00 | 42.63 |
| 24" | 600 | 24.00 | 609.60 | 15.00 | 381.00 | 0.25 | 6.35 | 23.50 | 596.90 | 89.00 | 40.36 | 0.38 | 9.53 | 23.25 | 590.55 | 133.00 | 60.32 |
| Schema 10S licht N.P.S. | Schema 40S Standaard NPS | ||||||||||||||||
| Nominale buisgrootte | Buitentijdsdiameter | Midden naar het gezicht | Inwendige diameter | Wanddikte | Ongeveer Wt. in ponden/kg. | Inwendige diameter | Wanddikte | Ongeveer Wt in pond/kg. | |||||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | Lb | kg | in | mm | in | mm | Lb | kg |
| 1/2 inch. | 15 | 0.84 | 21.34 | 1.50 | 38.10 | 0.67 | 17.12 | 0.08 | 2.11 | 0.08 | 0.04 | 0.62 | 15.80 | 0.11 | 2.77 | 0.10 | 0.05 |
| 3/4 inch. | 20 | 1.05 | 26.67 | 1.13 | 28.58 | 0.88 | 22.45 | 0.08 | 2.11 | 0.09 | 0.04 | 0.82 | 20.93 | 0.11 | 2.87 | 0.11 | 0.05 |
| 1 inch | 25 | 1.32 | 33.40 | 1.50 | 38.10 | 1.10 | 27.86 | 0.11 | 2.77 | 0.17 | 0.08 | 1.05 | 26.64 | 0.13 | 3.38 | 0.20 | 0.09 |
| 1-1/4 inch. | 32 | 1.66 | 42.16 | 1.88 | 47.63 | 1.44 | 36.63 | 0.11 | 2.77 | 0.29 | 0.13 | 1.38 | 35.05 | 0.14 | 3.56 | 0.32 | 0.15 |
| 1-1/2 inch. | 40 | 1.90 | 48.26 | 2.25 | 57.15 | 1.68 | 42.72 | 0.11 | 2.77 | 0.39 | 0.18 | 1.61 | 40.89 | 0.15 | 3.68 | 0.50 | 0.23 |
| 2′′ | 50 | 2.38 | 60.33 | 3.00 | 76.20 | 2.16 | 54.79 | 0.11 | 2.77 | 0.65 | 0.29 | 2.07 | 52.50 | 0.15 | 3.91 | 0.89 | 0.40 |
| 2 1/2 inch. | 65 | 2.88 | 73.03 | 3.75 | 95.25 | 2.64 | 66.93 | 0.12 | 3.05 | 1.08 | 0.49 | 2.47 | 62.71 | 0.20 | 5.16 | 1.72 | 0.78 |
| 3′′ | 80 | 3.50 | 88.90 | 4.50 | 114.30 | 3.26 | 82.80 | 0.12 | 3.05 | 1.54 | 0.70 | 3.07 | 77.93 | 0.22 | 5.49 | 2.75 | 1.25 |
| 3 1/2 inch. | 90 | 4.00 | 101.60 | 5.25 | 133.35 | 3.76 | 95.50 | 0.12 | 3.05 | 2.14 | 0.97 | 3.55 | 90.12 | 0.23 | 5.74 | 3.57 | 1.62 |
| 4′′ | 100 | 4.50 | 114.30 | 6.00 | 152.40 | 4.26 | 108.20 | 0.12 | 3.05 | 2.72 | 1.23 | 4.03 | 102.26 | 0.24 | 6.02 | 5.26 | 2.39 |
| 5′′ | 125 | 5.56 | 141.30 | 7.50 | 190.50 | 5.30 | 134.49 | 0.13 | 3.40 | 4.58 | 2.08 | 5.05 | 128.19 | 0.26 | 6.55 | 8.65 | 3.92 |
| 6 inch. | 150 | 6.63 | 168.28 | 9.00 | 228.60 | 6.36 | 161.47 | 0.13 | 3.40 | 6.86 | 3.11 | 6.07 | 154.05 | 0.28 | 7.11 | 13.75 | 6.24 |
| 8 inch. | 200 | 8.63 | 219.08 | 12.00 | 304.80 | 8.33 | 211.56 | 0.15 | 3.76 | 13.50 | 6.12 | 7.98 | 202.72 | 0.32 | 8.18 | 27.00 | 12.24 |
| 10′′ | 250 | 10.75 | 273.05 | 15.00 | 381.00 | 10.42 | 264.67 | 0.17 | 4.19 | 25.00 | 11.34 | 10.02 | 254.51 | 0.37 | 9.27 | 48.50 | 22.00 |
| 12 inch. | 300 | 12.75 | 323.85 | 18.00 | 457.20 | 12.39 | 314.71 | 0.18 | 4.57 | 34.00 | 15.42 | 12.00 | 304.80 | 0.38 | 9.53 | 75.00 | 34.01 |
| 14" | 350 | 14.00 | 355.60 | 21.00 | 533.40 | 13.62 | 346.05 | 0.19 | 4.78 | 46.00 | 20.86 | 13.25 | 336.55 | 0.38 | 9.53 | 89.00 | 40.36 |
| 16 inch. | 400 | 16.00 | 406.40 | 24.00 | 609.60 | 15.62 | 396.85 | 0.19 | 4.78 | 60.00 | 27.21 | 15.25 | 387.35 | 0.38 | 9.53 | 116.00 | 52.61 |
| 18 inch. | 450 | 18.00 | 457.20 | 27.00 | 685.80 | 17.62 | 447.65 | 0.19 | 4.78 | 75.00 | 34.01 | 17.25 | 438.15 | 0.38 | 9.53 | 154.00 | 69.84 |
| 20′′ | 500 | 20.00 | 508.00 | 30.00 | 762.00 | 19.56 | 496.93 | 0.22 | 5.54 | 126.00 | 57.14 | 19.25 | 488.95 | 0.38 | 9.53 | 189.00 | 85.71 |
| 24" | 600 | 24.00 | 609.60 | 36.00 | 914.40 | 23.50 | 596.90 | 0.25 | 6.35 | 177.00 | 80.27 | 23.25 | 590.55 | 0.38 | 9.53 | 265.00 | 120.18 |
